Standard Robot Package
$15,500
The Grain Weevil makes work safe and productive. Farmers comfortably control their robot from outside the bin, allowing them to work more efficiently without the dangers of putting their boots in the grain. The Grain Weevil protects people and their profit by mitigating risk and increasing grain yield and quality.
What’s Included:
1 x Robot Controller
1 x Bin Camera System
1 x Standard Charger
1 x Robot Lift System – Permanently Installed
- Weight: 50 lbs
- Dimensions (LxWxH): 26″ x 24″ x 12″
- Standard Run Time: 1 hr
- Charging Time: 30 mins – standard, 15 mins – supercharger
- Dust and Watertight
Reserve yours today
for 10% down and $500 off
Currently, pre-orders are limited to farms near our BinAssist Network partner locations. Only 250 pre-orders available.

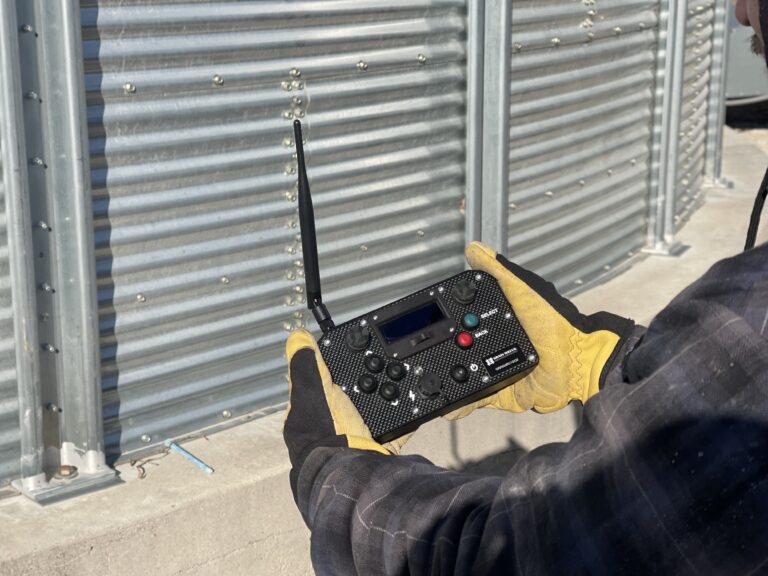

Precise Robot Control For Grain Work
An industrialized controller lets you precisely control your robot from outside the bin. Its easy-to-master design and fortified construction lets it weather mother nature’s harshest conditions, so you can operate in the grain bin from outside of the bin, even with your gloves on.
Charge Fast, Work Hard
The Grain Weevil’s Lithium Titanate (LTO) battery system is sealed from the elements, protecting it from even the most strenuous of work conditions. The robot has 1 hour of hard runtime and can fully charge in as little as 15 minutes using the Supercharger upgrade. Each battery is guaranteed for 15,000 cycles.

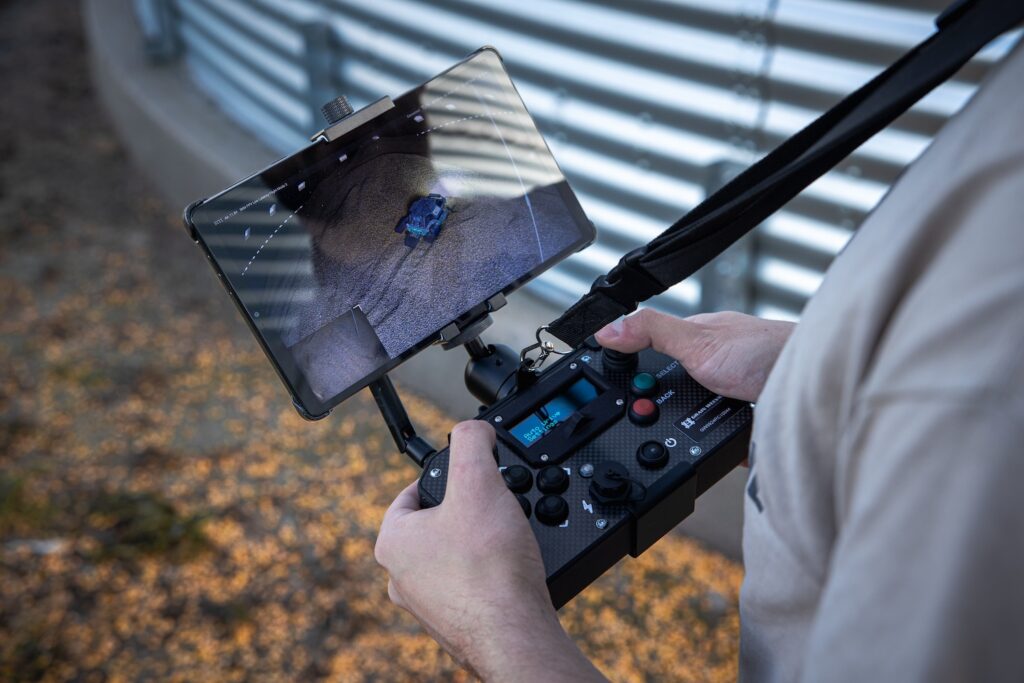

See The Grain Bin Work Being Done
The Grain weevil comes fully equipped to stream low latency, high definition video. The camera dome uses an integrated magnetic mount that grants total flexibility for attachment locations. Pan, tilt, and zoom anywhere inside your grain bin as you stay out of the dust and drive the robot in comfort.

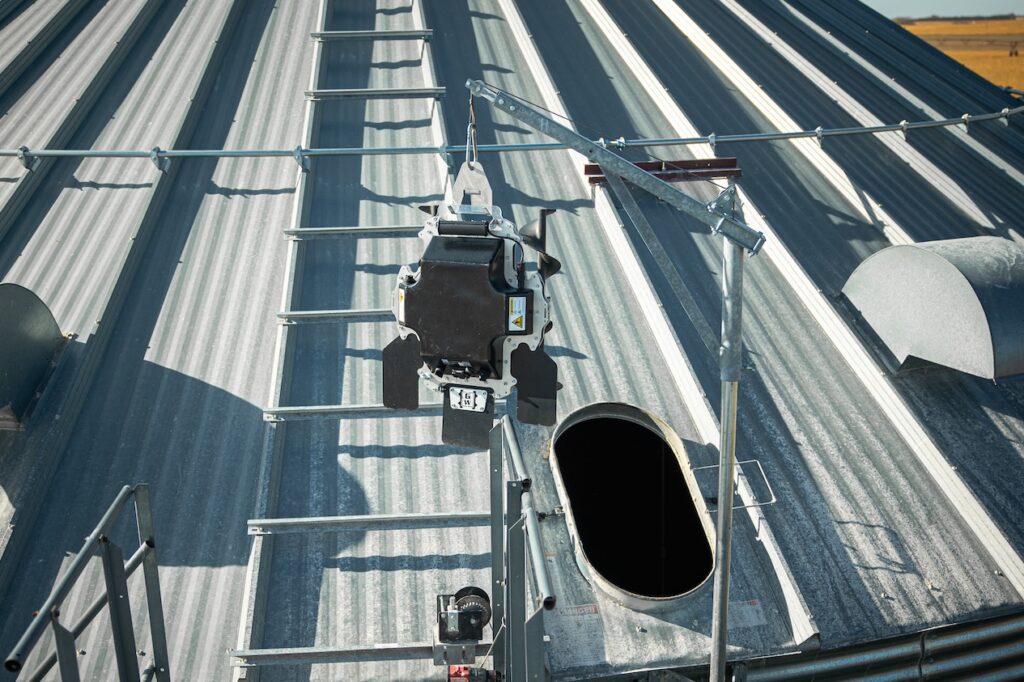

Need a Lift?
Simplify your robot lifting and lowering with our permanently installed Robot Lift System (aka the Weevilizer) onto your bin. Installation and setup is specific to each bin to make transferring robots in and out a breeze.
The system is comprised of one drill-driven winch and a robot jib crane that comes standard with all robot packages* and works on nearly any farm bin. Additional Robot Lift Systems can be added to any order. Reach out to your local BinAssist Partner to find out what will work best on your farm.
*installation and labor not included
A tool to help make managing your bins safer, easier, better and a little more fun.
Leveling: 8 hours
Surface Aeration: 3 hours 30 mins
Crust Break Up: 9 hours
48’ Bin
A tool to help make managing your bins safer, easier, better and a little more fun.
Leveling: 3 hours
Surface Aeration: 2 hours
Crust Break Up: 5 hrs 30 mins
36’ Bin
A tool to help make managing your bins safer, easier, better and a little more fun.
Leveling: 1 hour 45 mins
Surface Aeration: 1 hour 15 mins
Crust Break Up: 1 hr 15 mins
32’ Bin
A tool to help make managing your bins safer, easier, better and a little more fun.
Leveling: 45 mins
Surface Aeration: 45 mins
Crust Break Up: 1 hr 15 mins
24’ Bin
Accessories
All accessories below come standard on all robots and packages.
The grain leveling shovel moves more grain during your leveling operations. Its quick release design enables you to remove or attach the shovel to adapt to varying grain conditions on your farm.
Our service light bar illuminates grain bins so you can operate the Grain Weevil robot in conditions with limited lighting.
Anti-flip wings engage with the grain when traversing across steep slopes to prevent the robot from flipping over. A quick pin lock feature allows the wings to fold back, reducing the robot’s width from 24″ to 20″ for smaller entry doors.
Specs
Downloads
Weight
50 lbs
Height
12″
Length
26″
Width
24″
Run Time
1 hour
Charge Time
30 minutes
Brochure
